4 Gauge Custom Built Ultra Flexible Battery Cable

C$0.00
Cable build
Please choose
End 1 - terminal
Please choose
End 2 - terminal
Please choose
End 1 - optional cover
Please choose
End 2 - optional cover
Please choose
Workshop build details
Enter your text
Short Circuit Protection
Please choose
In stock
Product Details
Brand: Battery Cables Canada

4 Gauge flexible copper battery cable, made to order in Winnipeg. Sold individually. Choose a single lead or add a matching red-and-black pair. Each lead in the pair has the same length and end fittings.

Build your cable

  1. Choose inches, centimetres or metres and enter your finished length. Inch orders use whole inches; metric orders use whole centimetres.
  2. Choose black negative, red positive, or a matching pair. Red cable costs 5% more; terminal prices are the same. Pair accessories such as a fuse holder or disconnect switch are fitted to the red lead only.
  3. Choose the fitting for each end. Eyelet size is the diameter of the bolt or stud it fits.
  4. Add protective covers and any accessories you need.

How to measure

For eyelets, measure from the centre of one mounting hole to the centre of the other. Allow enough slack for bends and movement. For a battery clamp, measure to the centre of the battery post.

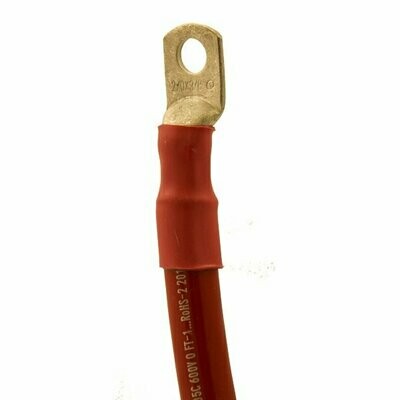

We crimp your selected terminals and finish the connections with heat shrink. Choose No Terminal if you want an unterminated end. Optional covers must match the fitting on that end.

Optional fuse and extra positive lead

Add a MEGA fuse holder and choose your fuse amperage and voltage. Each fuse package includes two matching fuses: one fitted and one spare. Choose 32V fuses for a 12V or 24V system, or 80V fuses for a 48V system. The fuse pair costs $15 for 32V or $24.99 for 80V; the holder is $40.50, plus your selected connection lead and eyelets. Enter the length of the extra red cable that connects the battery to the holder. The package price includes the holder, two fuses, same-gauge red lead and two crimped copper eyelets with 3/8-inch holes. The extra lead is separate from your main cable length. For a matching pair, we add one protection package only.

Fit the fuse close to the battery. Check that the chosen fuse is suitable for your cable, battery voltage and equipment. Need a different eyelet size or a shorter lead? Contact us.

How many amps does an inverter draw?

A bigger inverter needs more power from the battery. These are approximate battery amps when running at full output:

Inverter load 12V battery 24V battery 48V battery
500W 50A 25A 12A
1,000W 95A 50A 25A
1,500W 140A 70A 35A
2,000W 185A 95A 50A
3,000W 280A 140A 70A
5,000W 465A 235A 120A
6,000W — 280A 140A
8,000W — 375A 190A
10,000W — 465A 235A
15,000W — 695A 350A

Estimates allow for about 90% inverter efficiency at nominal battery voltage, rounded for a quick guide. Draw rises as battery voltage falls; starting a motor can briefly draw much more.

These are running amps, not fuse sizes. Use the inverter maker's specified fuse and cable size. The fuse must also suit your cable and battery; lithium batteries may need a high-interrupt-rating fuse such as Class T. Victron wiring guide. Not sure? Send us your inverter model and battery voltage.

Need help? Email sales@batterycables.ca or call 204-291-7198. Send your length, cable size and a picture of the ends you need.
