Custom 10 Gauge Solar Extension Cables

C$0.00
Finished length
Please choose
Cable colour
Connector #1
Please choose
Connector #2
Please choose
In stock
Product Details
Brand: Battery Cables Canada

Custom 10 gauge solar extension cable, made to your length. Sold as one cable. Order two cables for a positive and negative run.

  1. Choose your cable length in one-inch steps.
  2. Choose red positive or black negative.
  3. Choose the connector for each end, or No Connector for a bare end.

Measure from one cable end to the other. Check the connectors on your existing equipment before choosing male or female ends. Solar connectors must be compatible with the mating connector; contact us if you are unsure.

Need help? Email sales@batterycables.ca or call 204-291-7198. Send your length, cable size and a picture of the ends you need.

Connector choices

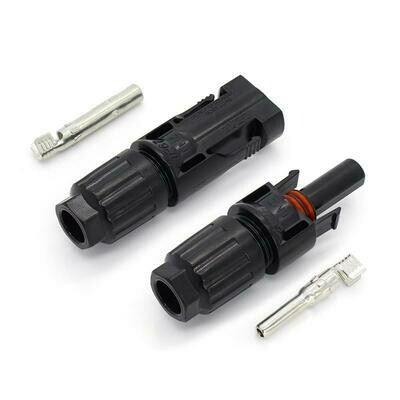

Typical solar module leads: The module’s positive (+) lead usually has a female MC4 contact (metal socket). Its negative (−) lead usually has a male MC4 contact (metal pin).

Order the opposite connector at each mating end. A male MC4 metal pin mates with a female metal socket. For example, if your solar module’s positive (+) lead has a male pin, order the red positive extension with a female socket at the module end. If the module’s positive lead has a female socket, order a male pin instead. Match polarity and check the connector make and model before ordering.

Choose the equipment end separately. Use bare cable for a breaker with a suitable wire terminal, an eyelet sized to fit a fuse-holder stud, or the matching male or female MC4 connector for a pre-wired combiner box. Contact us if you need an eyelet or a fitting that isn’t shown in the options.

We use generic MC4-style connectors. Choose a connector for each end, or leave an end bare for your controller or combiner. For an extension, choose connectors at both ends.

Send us the connector make and model already fitted to your equipment so we can check the match. MC4-style plugs from different manufacturers are not automatically approved to connect together.
